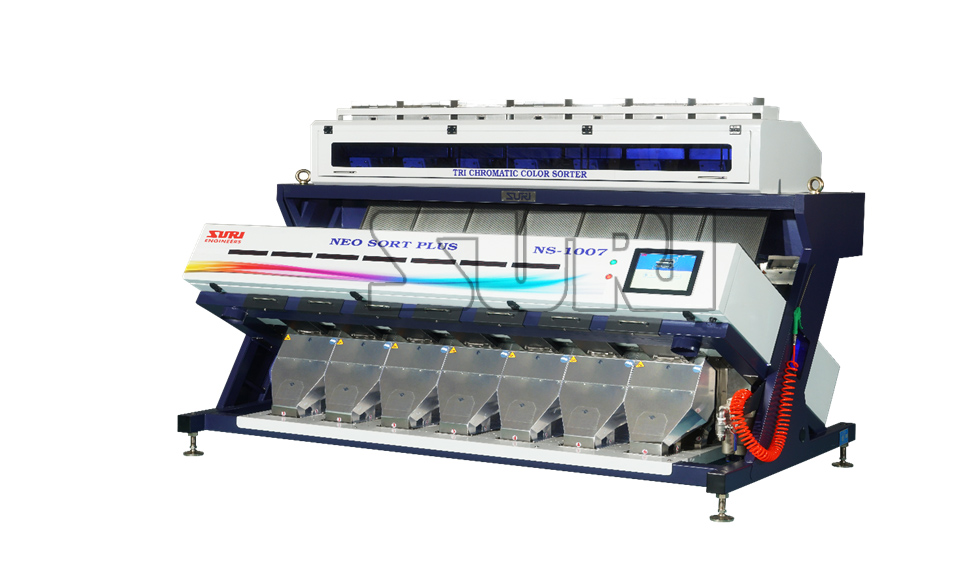

Neo Sort Series

NEO SORT SERIES

Cutting Edge Cameras

  • Trichromatic 5400 Pixel Cameras with high speed capability for superior scanning
  • Double Scanning System that recognizes up to 0.04 mm2

Smart Phone Ready and Cloud Integrated

  • Smart phone pairing system allows for the machine to be run remotely
  • Can store up to 40 user profiles using its cloud data capabilities

Easy to Use Interface

  • 12 Japanese Touch Screen with a super simple interface
  • Robust Windows Powered Operating System that allows for easy software updates

Advanced Image Processing Capability

  • Capture and Processes Images at a high speed allowing for recognition of tiny spots, tiny lines, yellows, etc

Intelligent Dust Cleaning System

  • Self triggered dust cleaning system that adapts to the conditions and reduces dust collection inside the machine in body

Intelligent Illumination System

  • Advanced LED lighting system is dimmable and adapts automatically to the material and environment
Model Channel Sorting: Resorting Combo Capability (t/th) Rejection Ratio
NS-1004 256 3:1 2.0-2.5 1:15
NS-1005 320 3:1:1/4:1 3.0-3.5 1:15
NS-1007 448 4:2:1 4.5-5.0 1:15
NS-1008 512 5:2:1 5.0-5.5 1:15
