Shelling & De Husking Machines

PADDY HUSKER

This machine is used for de-husking paddy and is fitted with two rubber rolls that run in opposite directions. Because of the friction developed in the crushing chamber, the machine offers up to 90% efficiency in shelling.

Advantages :-

  • Installed with sleeve type rubbers to get better output and yield.
  • Equipped with a specially designed exhaust cum cooling blower to increase the life of the rubbers.
Code No Product Name Capacity on Paddy Speed Power Recommended Dimensions(L*B*H in mm)
PHR00 PADDY HUSKER 3 Ton/hr 1230 RPM 10 HP /1440 RPM 1305 * 905 * 1050

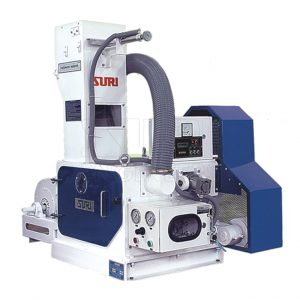

PNEUMATIC HUSKER

This machine is used for de-husking paddy and is fitted with two rubber rolls that run in opposite directions. Because of the friction developed in the crushing chamber, the machine offers up to 95% efficiency in shelling.

Advantages :-

  •  Installed with a sensor which automatically activates and de-activates the shelling system.
  • Equipped with a movable arm which moves closer to the fixed arm based on the pressure settings.
  • Vibrator system allows uniform distribution and control over capacity.
  • Machine is equipped with both automatic and manual modes.
Code No Product Name Capacity on Paddy Speed Power Recommended Dimensions(L*B*H in mm)
RS5F00 PNEUMATIC HUSKER 3 Ton/Hr 1270 RPM 10 HP /1440 RPM 1500 * 1000 * 1300

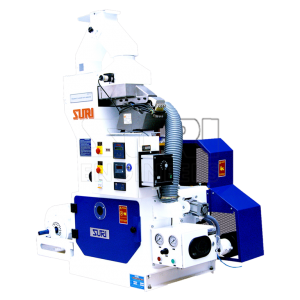

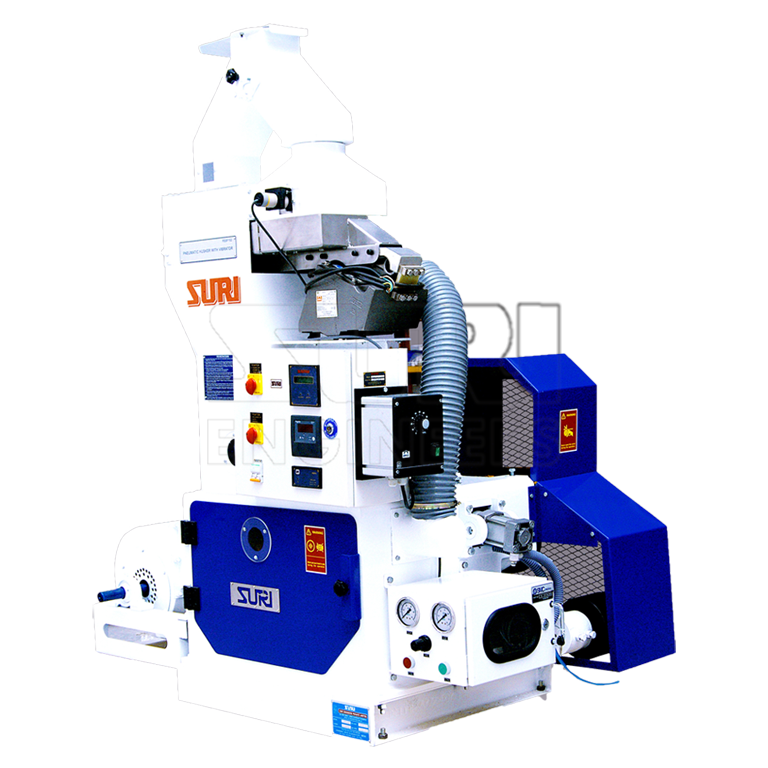

PNEUMATIC HUSKER WITH VIBRATOR

This machine is used for de-husking paddy and is fitted with two rubber rolls that run in opposite directions. Because of the friction developed in the crushing chamber, the machine offers up to 95% efficiency in shelling.

Advantages :-

  •  Installed with a sensor which automatically activates and de-activates the shelling system.
  • Equipped with a movable arm which moves closer to the fixed arm based on the pressure settings.
  • Vibrator system allows uniform distribution and control over capacity.
  • Machine is equipped with both automatic and manual modes.
Code No Product Name Capacity on Paddy Speed Power Recommended Dimensions(L*B*H in mm)
PRV00 PNEUMATIC HUSKER VIBRO 4 Ton/hr 1270 RPM 12.5 HP /1440 RPM 1500 * 1000 * 1730
PRSM00 PADDY PNEUMATIC HUSKER 6 Ton/Hr 1270 RPM 15 HP /1440 RPM 1505 *1050 * 1750

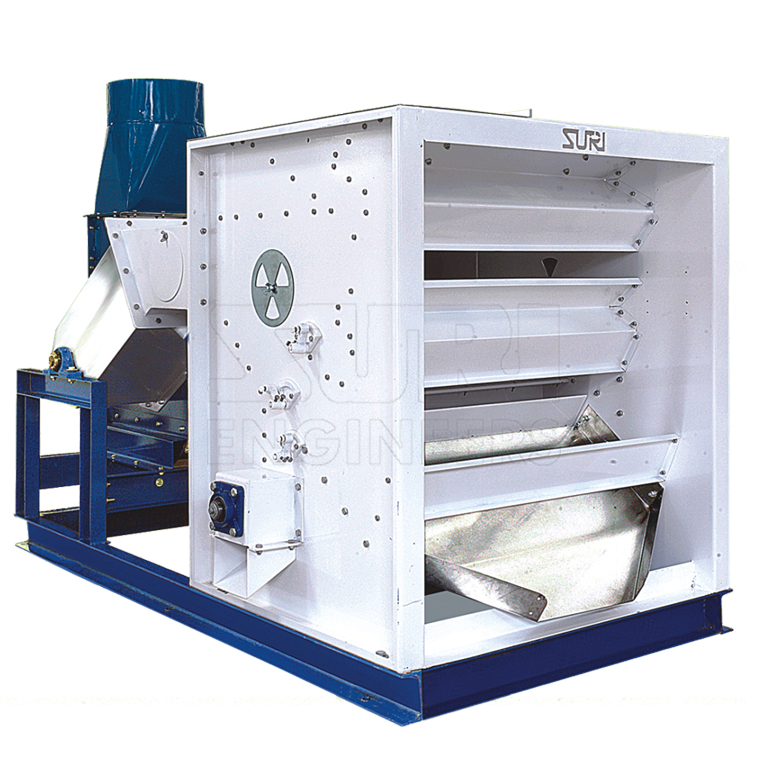

HUSK ASPIRATOR

The main function of this machine is to separate husk from the shelled paddy. Shelled paddy is allowed to flow through specially designed arrangement of flops.

Advantages :-

  • Equipped with a powerful blower for husk separation.
  • Immature paddy is separated via a conveyor.
Code No Product Name Capacity on Paddy Speed Power Recommended Dimensions(L*B*H in mm)
HAMF00 HUSK ASPIRATOR 3 Ton/hr 1100 RPM 3 HP/1440 RPM 2300 * 1350 * 1440
HA4F00 HUSK ASPIRATOR 4 Ton/hr 1292 RPM 5 HP/1440 RPM 2300 * 1500 * 1440
HA6F00 HUSK ASPIRATOR MEGA 6 Ton/Hr 1292 RPM 5 HP/1440 RPM 2300 * 1700 * 1440
